Automatic Folder Gluer machine for Carboard boxes

FOB Reference Price:Get Latest Price
$1.00 - $2.00 / Set | 1 Set/Sets (Min. Order)
Power:
12KW
Model Number:
BS-650PC
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Application:
Beverage, Chemical, Commodity, Food, Medical
Packaging Material:
Plastic, Wood
Type:
Boxing Machine
Condition:
New
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Place of Origin:
Shanghai, China
Brand Name:
champion
Voltage:
380V 50HZ
Weight:
4ton
Automatic Grade:
Automatic
Certification:
CE / ISO9001:2008
Packaging Type:
Case
Driven Type:
Mechanical
Dimension(L*W*H):
11x1.4x1.8m
Applicable Industries:
Printing Shops
Carton board:
max. 800 gsm
Corrugated flute type:
N, E & F
Speed:
max. 400 m/min
Inching speed:
10 m/min
Thickness of folded box:
max. 12 mm
Blank width:
max. 650 mm
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Sea packing, shockproof, suitable for long-distance road and vessel transportation and various types of weather conditions
Port
shanghai prot or any other chinese port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Video Description
Product Description

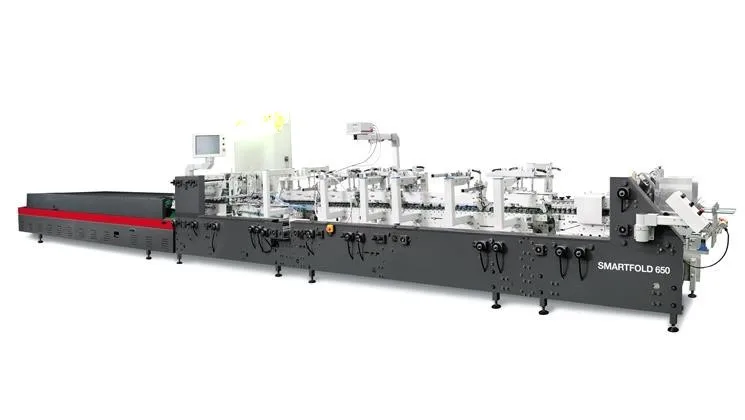

   Smartfold 650PC  automatic cardboard folder gluer machine Including standard left side glue pot and one HHS gluing system with 3 guns.

The machine max speed is 400 meters/minute. Smartfold_650_.jpg

Suitable for solid board up to 800 gsm and E, F & N flute corrugated.



Technical parameters



Processed materials

Carton board

max. 800 gsm

Corrugated flute type

N, E & F

Capability

Speed

max. 400 m/min

Inching speed

10 m/min

Thickness of folded box

max. 12 mm

Blank width

max. 650 mm

Dimensions & Weight

Length

11 m

Width

1.4 m

Height

1.8 m

Net weight

4 Ton

Installation

Electrical connected load

12 Kw

Compressed air

6 bar

Air compressor capacity

10 m³/h

Air tank capacity

60 L



Key components

Includes 8 sections: Feeder, side register, pre-folding section, lock bottom section, Gluing section, Folding & closing section, Transfer (trombone) and pneumatic press section.





Description



  1.  Feeder section
  • Friction Feeder with 8 untimed feeding belts, 30 mm width.
  • Adjustable vibrating motor.
  • Lateral feed gates fully adjustable to the width of the blank.
  • (2) Two adjustable front feed knives with carton spacing carriers (bogies).



2. Side Register unit

  • Due to the speed differential between the feeder and the machine, this system allows to register the blanks on their progress towards the pre-folding section, getting a perfect alignment.





3. Pre-folding section

  • Left hand glue flap pre-folder up to 180º.
  • 3rd crease pre-folding set up to 135º.
  • 1st and 3rd crease openers.



  1.  Lock bottom section
  • Four (4) set of folding fingers to fold flaps and panels.
  • Three (3) upper & lower carriers.
  • Accesories for B-type lock bottom boxes.



5. Gluing section

  • Lower glueing tank, left side, easy to remove and clean.
  • Standard 4 mm wide glue disc, other thicknesses are available as options.
  • Upper gluing system by discs NOT AVAILABLE in Smartfold series.
  • Optional Electronic upper gluing system by guns, upon request.



6. Folding and closing section

  • 25 mm bottom belts & 30 mm outer belts with variable speed.
  • Left & right side completes 180º folding second and fourth creases.
  • Left & right side guide wheels allow flexible adjustment of different positions to facilitate folding.



7. Transfer section

  • Upper and lower arms adjustable in length.
  • Automatic belt tensioning system.
  • Automatic collecting boxes to ensure a perfect spreading of the same to its entry into the pressing station.
  • Electronic counter and "kicker" for marking packets.
  • Equipped with air compressor.



 8. Press section

  • Apron width 900 mm.
  • Upper section can be moved back and forward depending of box length.
  • Pneumatic pressure adjustment to avoid marks.
  • Automatic or manual mode.
  • 5 meters total length with 3.5 meters effective pressure length.
