Low Speed 50pcs New Top Sales Paper Cup Forming Machine for Paper cups

FOB Reference Price:Get Latest Price
$18,000.00 - $25,000.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
CBZ-S12
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Customized packaging (Min. Order: 1 Units)

More

Graphic customization (Min. Order: 1 Units) Less
Report Suspicious Activity
Overview
Quick Details
Product Type:
Paper Cup Machine
Processing Type:
Paper Folding Machine
Power(W):
5kw
After-sales Service Provided:
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Warranty:
1 Year
Applicable Industries:
Printing Shops
Condition:
New
Place of Origin:
Beijing, China
Brand Name:
CHAMPION
Voltage:
380
Dimension(L*W*H):
2800x1350x1760mm
Weight:
1600kg
Certification:
CE
Production Capacity:
50/M
Paper Size:
6-12oz
Raw Material:
Double and singlePE Coated paper
Speed:
35-70pcs/min
Function:
cup forming
Supply Ability
Supply Ability:
20 Unit/Units per Month
Packaging & Delivery
Packaging Details
wooden case
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Product Description

Please find our machine specification and payment term as below:



PaymentTT/LC
Delivery

60-120 days





CBZ-S22 paper cup forming machine is an automatic machine with multi-working station. It produces two-side film-coated paper cup through the procedure of automatic paper feeding, ultrasonic welding, top mouth lubrication, bottom punching, two times of bottom heating, bottom knurling, curling and cup stack. The sealing system is ultrasonic sealer, so this model is suitable for making two side PE coated paper with full printing design cups. This cup can be for both hot and cold drinking, such as soft drinking, ice-cream and coffee etc.

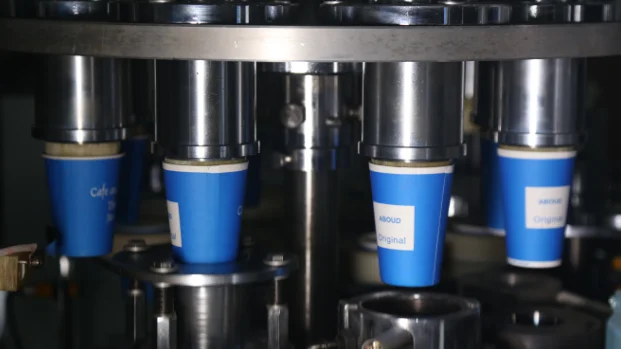

Machine structural components

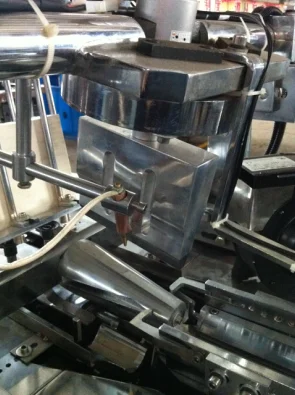

Ultrasonic bonding

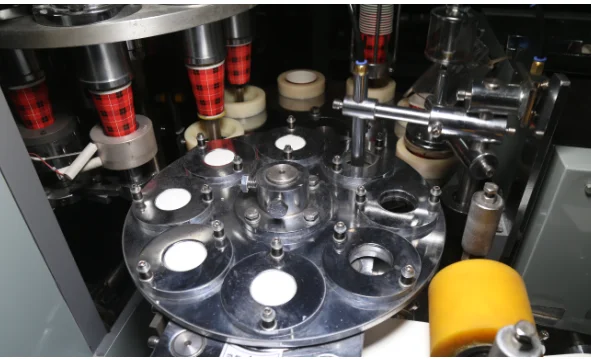

Cup bottom rotary table

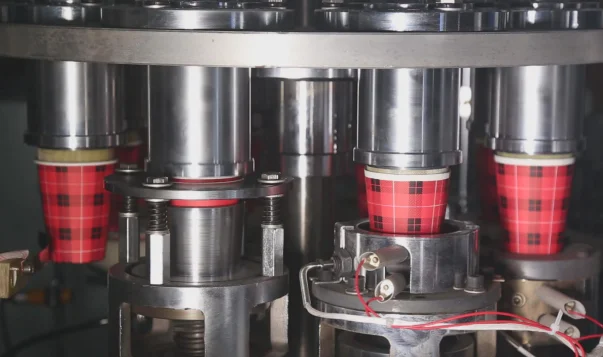

Cup mould parts

Cup edge



Model

CBZ-S22

Cup size

16-22OZ

Raw material

Two side PE coated paper and one side PE coated paper

Top mouth diameter

50-95mm

Bottom diameter

35-70mm

Cup height

100-175mm

Bottom depth

≤12

Angle

2-8°

Capacity

30-35pcs/min

Power source

380V 50Hz  (it can be changed if customer require)

Total power

8KW

Weight

1900Kg

Package size

(L*W*H)

3300×1450×2000mm

800×750×1350mm

Air source

0.2m³/min;0.6MPa(customer-owned)
