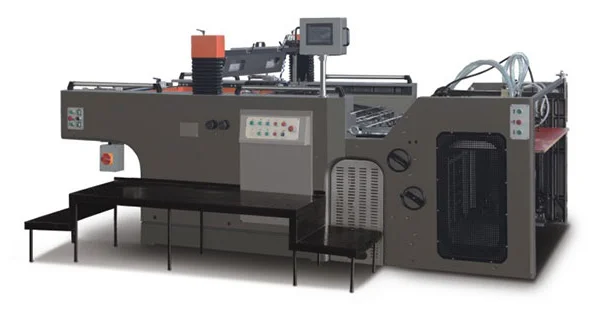

Fully Automatic Stop Cylinder Screen Press Printing Machine

FOB Reference Price:Get Latest Price
$50,000.00 - $120,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
CJB-1020A
Gross Power:
14.64KW
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Color & Page:
Multicolor
Certification:
CE
Usage:
Paper Printer, Label Printer, Card Printer, Cloths Printer
Plate Type:
Screen Printer
Condition:
New
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Place of Origin:
CHINA
Brand Name:
CHAMPION
Voltage:
380
Weight:
5000KG
Automatic Grade:
Automatic
Applicable Industries:
Printing Shops
Supply Ability
Supply Ability:
10 Unit/Units per Month
Packaging & Delivery
Packaging Details
W/C
Port
SHANGHAI
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Video Description
Product Description

 CJB-A Series full automatic stop cylinder screen press which adopts the classical stop cylinder technology with the advantages such as: paper located exactly and steadily, high precision, high speed, low noise, high degree auto matizaton and so on, it is suitable for printing on ceramic and glass applique, electron industry (film switch, flexible circuitry, meter panel, mobile telephone), advertisment, packing and printing, brand, textile transfer, special technics etc.

1 .Classical stop cylinder mechanism, cylinder stops step automatically to ensure the forehead of the printing stock can be sent accurately to the gripper of cylinder, which is up to extreme high precision; at the same time, gripper of cylinder and pull side-lay both have the magic eyes for supervising if the printing stock is in correct place, which can reduce the waster effectively.

2.The bottom of convey table with vacuum adsorption, assembled with the pull and press mechanism, ensure printing stock deliveryed smoothly.

3.Two cams separately control the movement of squeegee and ink-return blade; squeegee with the pneumatical pressure kept device, the printing graphics is more clearly and the ink layer is more well-proportioned.

4.The screen frame rack can be pulled out, which is easy for adjusting the register or feeding, as well as cleaning the cylinder and screen frame; at the same time, it is assembled with device to hold the ink dropped to avoid the ink drops on the cylinder.

5.Main transmission and main parts lubricate automatically, prolong the using precision and machine life in effect.

6.The whole machine controlled by PLC, can choose touch screen for operating, which is very easy and high degree automatism.

7.It can be used with CJB Series screen drying machine, UV dryer, UV & IR dryer and automatic stacker to form the full automatic screen printing line.

ModelCJB-720ACJB-800ACJB=1020A
Max.paper dimension720X520mm800X610mm1020X720mm
Min.paper dimension350X270mm350X270mm560X350mm
Max.printing dimension720X500mm800X600mm1020X710mm
Paper thicknes108-400g108-400g120-400g
Border≤10mm≤10mm≤10mm
Max.printing speed1000-3600pcs\h1000-3300pcs\h1000-3000pcs\h
Power3p 380v 50Hz 8.89KW3p 380v 50Hz 8.89KW3p 380v 50Hz 14.64KW
Weight(about)3500kg4000kg5000kg
Overall dimensions4050X2240X1680mm4350X2580X1680mm4650X2800X1680mm


Dear sir:

Pls find our specification and payment term as below :


Payment

TT / LC

Delivery

60-120 days

if there is any question , please feel free to contact us.
